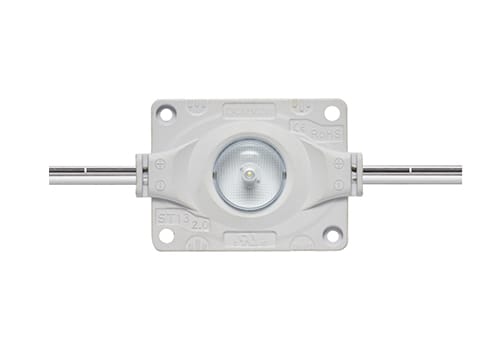

PANORAMA 12V

High power wide angle lens modules.
For light boxes with a depth of: 70-150 mm
70-150 mm
5 years warranty
5 years
IP protection 65
IP 65
Color temperature: 6500K
6500K
Lighting angle: 160°
160°
Constant current driver system

See PDF specification:

Dedicated light boxes depths for modules.

Select the depth of the light box:

Suitable for this depth:

Dimensions:

Connection diagram:

Note: The maximum number of modules connected in one chain is 20 pcs! When using a larger number of modules, it is necessary to use parallel supply of chains.

ParametersPanorama 12V
Module power/current2W/175mA
Supply power12V
Luminous flux194 lm
Light efficiency90 lm/W
Lighting angle160°
Color temperature6500K
Operating temperature-20°C ~ 50 °C
Dimensions (length x width x height)52x35x7,3
Module spacing182mm
Chip type3030
IP protectionIP65
Durability50 000h
Maximum number of modules in the chain20 pcs
Warranty5 years
