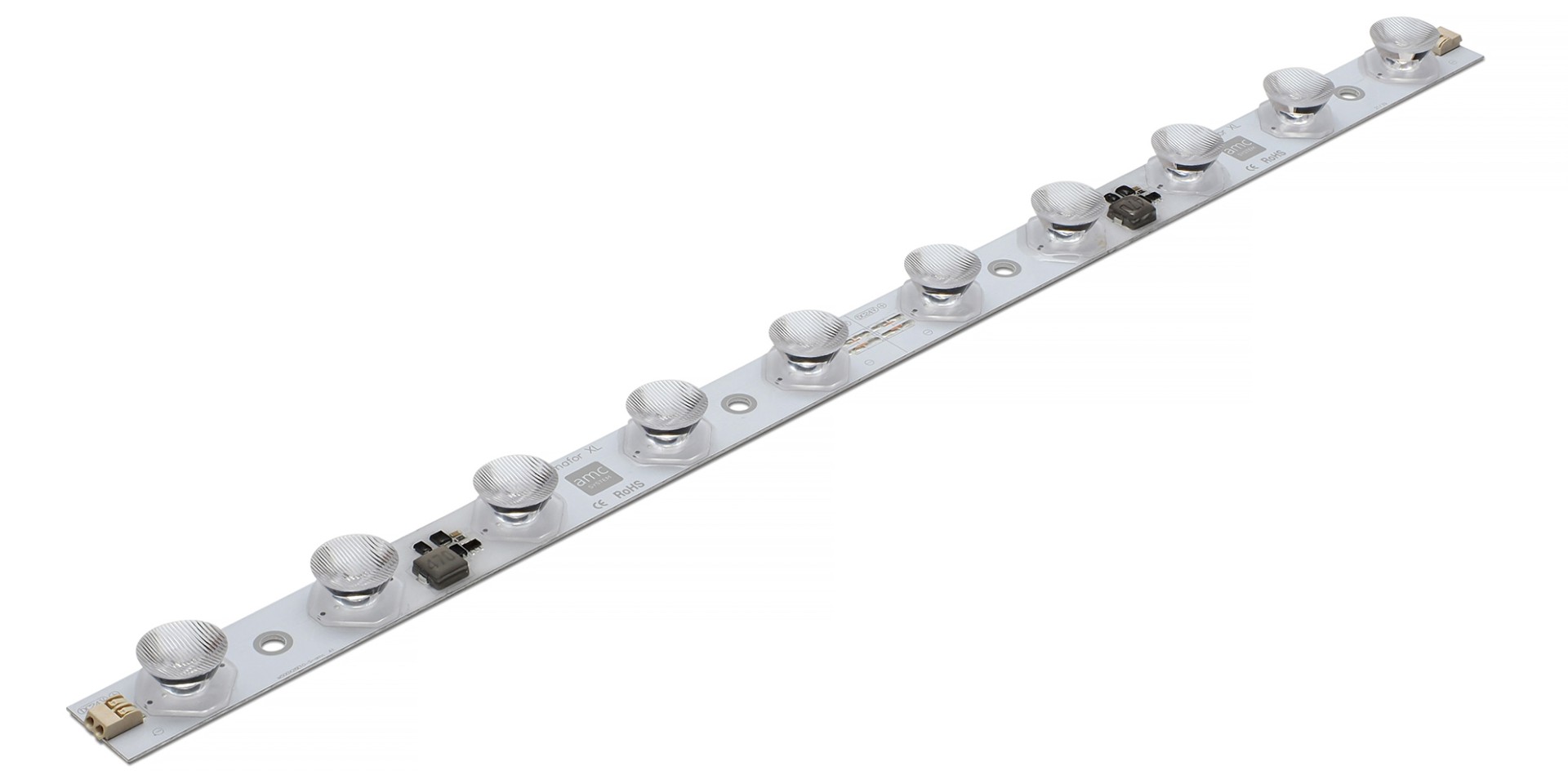

SEMAFOR XL
Designed for edge light of single and double sided lixghtboxes up to 2.5m height.
For light boxes with a depth of: 50-200 mm
50-200
mm4 years warranty
4 yearsIP protection 65
IP 65Color temperature: 6500K
6500KLighting angle: 20x40°
20x40°Constant current driver system
See PDF specification:
Select the depth of the light box:
Suitable for this depth:

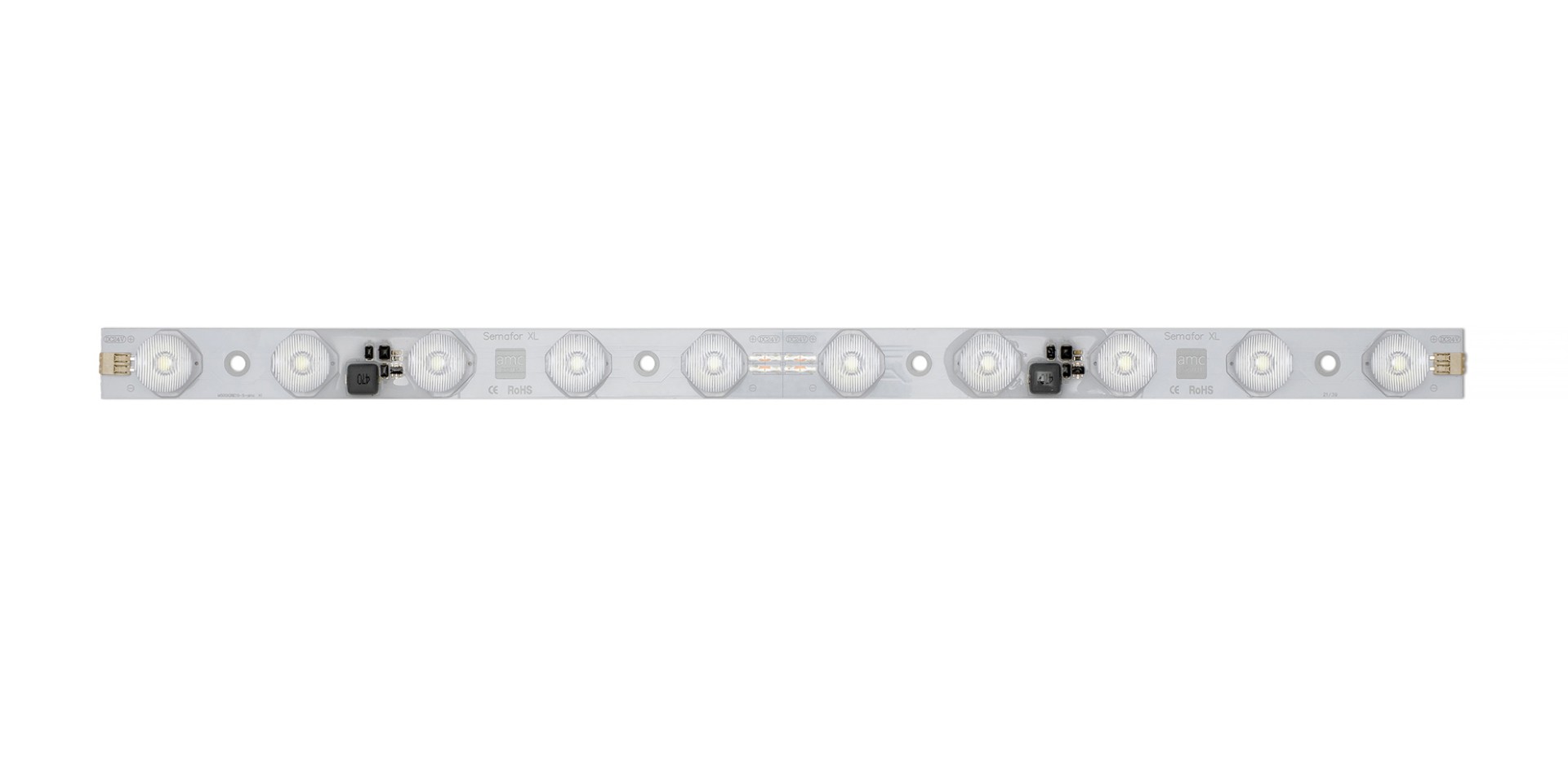

Dimensions:

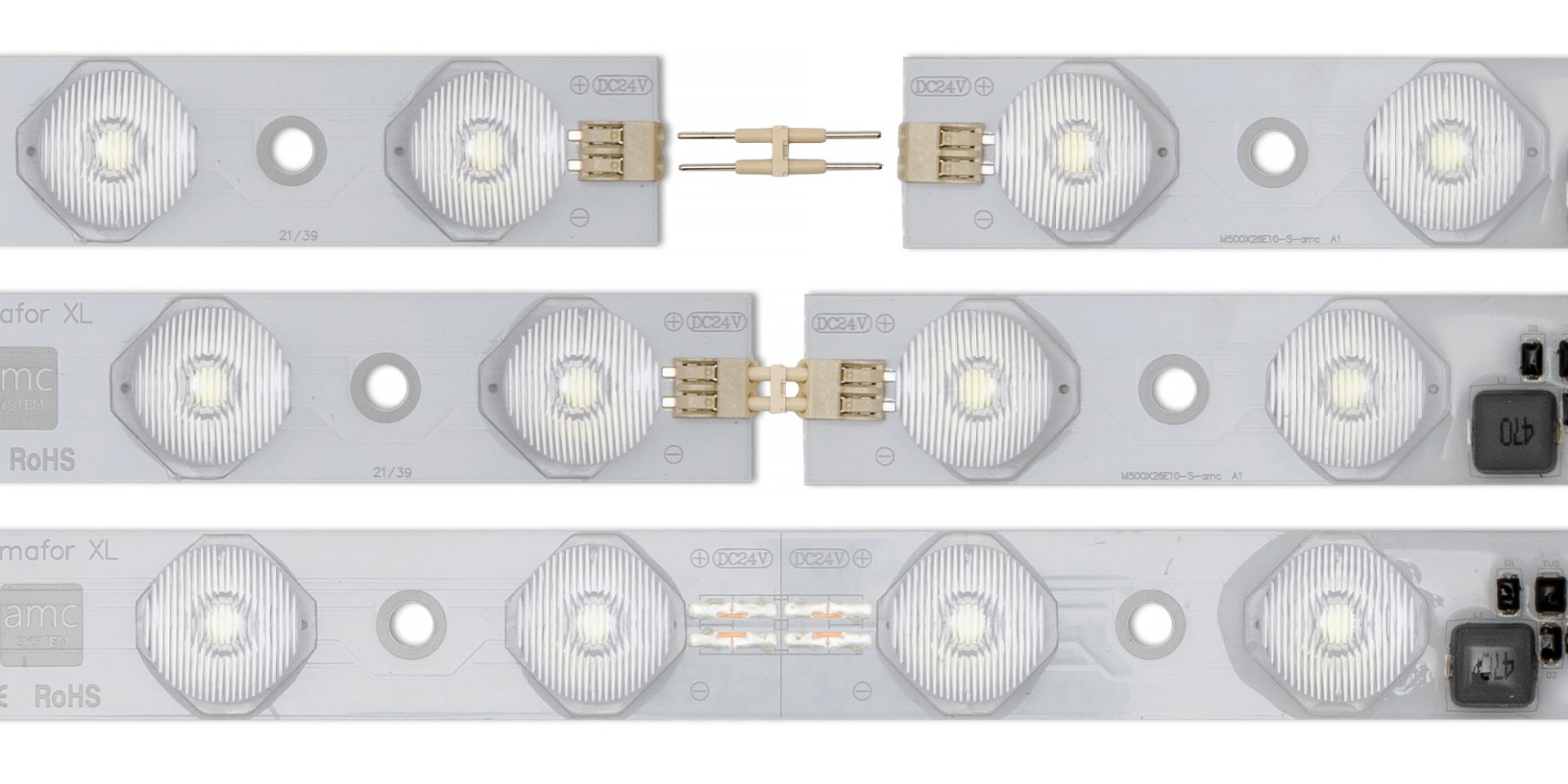

Connection diagram:
Note: The maximum number of modules connected in one chain is 5 pcs! When using a larger number of modules, it is necessary to use parallel supply of chains.
| Parameters | Semafor XL |
|---|---|
| Module power/current | 20W/480mA |
| Supply voltage | 24V |
| Luminous flux | 1600-1800 lm |
| Light efficiency | 82 |
| Illumination angle | 20x40° |
| Color temperature | 6000-7000K |
| Operating temperature | -25°C ~ 60 °C |
| Dimensions (length x width x height) | 500x26x13 |
| Module spacing | 49mm |
| Chip type | OSRAM 3030 |
| IP protection | IP65 |
| Durability | 50 000h |
| Maximum number of modules in chain | 5 pcs |
| Warranty | 4 years |
