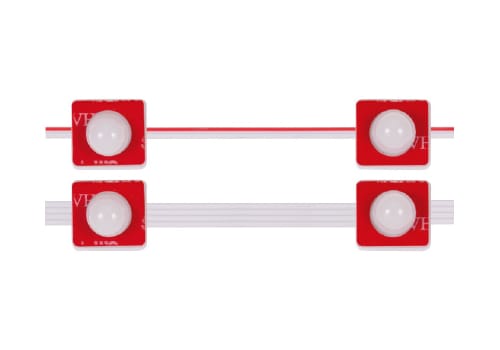

PIXEL XL
Dot type mini LED modules for application AS direct light signs.
3 years warranty
3 yearsIP 68
IP 68Color temperature: RGB, 4000K - - 7000K
RGB, 4000K - - 7000KBeam angle: 120°
120°Constant current driver system
See PDF specification:
Choose the depth:
Suitable for this depth:

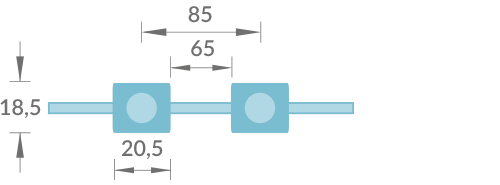

Dimensions:
Connection scheme:
Attention!
The maximum number of modules connected in one chain is 50 pcs.!
In case of use of the larger number of modules, please connect them to power supply by separate cables (parallel connection of chains)
| Type | PIXEL XL |
|---|---|
| Rated power/ forwarding current | 0.36W/30mA, 0.3W/25m – RGB |
| Voltage | 12V, 5V-RGB, RGBD |
| Luminous flux [Lm] | White – 27 lm, red – 14 lm, blue – 5lm, green 18 lm, RGB – 6lm |
| Light efficiency | White – 44 lm/W, red – 23 lm/W, blue – 16lm/W, green 30lm/W, RGB – 10lm/W |
| Beam angle | 145° |
| Color temperature [K] | 4000K, 7000-8000K, Red, Blue, Green, RGB,RGBD |
| Operating temperature | -25°C ~ 60 °C |
| Dimensions (l x w x h) | 20,5x18,5 x15,7 – 12mm diameter |
| Module spacing [mm] | 85 mm |
| Chip | 2835, RGB - 5050 |
| IP rating | IP 65 |
| LED lifespan [h] | 50 000h |
| Maximum quantity in single chain | 50 pcs. |
| Warranty | 3 years |
