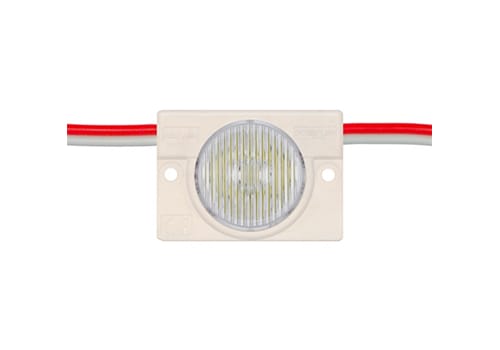

MINI SEM
LED modules designed for edge Lighting of shallow lightboxes.
Suitable for this depth: 80-200 mm
80-200
mm4 years warranty
4 yearsIP 65
IP 65Color temperature: 6500K, 10000K
6500K, 10000KBeam angle: 15x45°
15x45°Constant current driver system
See PDF specification:
Choose the depth:
Suitable for this depth:
Dimensions:
Connection scheme:
Attention!
The maximum number of modules connected in one chain is 20 pcs.!
In case of use of the larger number of modules, please connect them to power supply by separate cables (parallel connection of chains)
| Type | Mini Sem |
|---|---|
| Rated power/ forwarding current | 1,2W/100mA |
| Voltage | 12V |
| Luminous flux [Lm] | 120 lm |
| Light efficiency | 100 lm/W |
| Beam angle | 15x45° |
| Color temperature [K] | 6500K, 10000K |
| Operating temperature | -25°C ~ 60 °C |
| Dimensions (l x w x h) | 38x22x12 |
| Module spacing [mm] | 135mm |
| Chip | 3030 |
| IP rating | IP65 |
| LED lifespan [h] | 50 000h |
| Maximum quantity in single chain | 20 pcs. |
| Warranty | 4 years |
