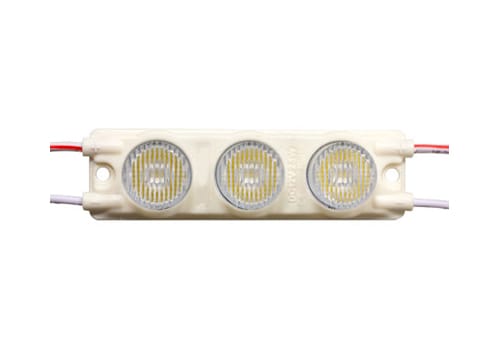

MINI SEM 3

LED modules designed for edge Lighting of shallow lightboxes.
Suitable for this depth: 80-200 mm
80-200 mm
4 years warranty
4 years
IP 65
IP 65
Color temperature: 4000K, 6500K
4000K, 6500K
Beam angle: 10x65°
10x65°
Constant current driver system

See PDF specification:

Tested in a wide range to use.

Choose the depth:

Suitable for this depth:

Dimensions:

Connection scheme:

Attention!

The maximum number of modules connected in one chain is 30 pcs.!
In case of use of the larger number of modules, please connect them to power supply by separate cables (parallel connection of chains)

TypeMini Sem 3
Rated power/ forwarding current2,5 W/200mA
Voltage12V
Luminous flux [Lm]240 lm
Light efficiency96 lm/W
Beam angle10x65°
Color temperature [K]4000K, 6500K
Operating temperature-25°C ~ 60 °C
Dimensions (l x w x h)74x20x12
Module spacing [mm]160mm
Chip2835
IP ratingIP65
LED lifespan [h]50 000h
Maximum quantity in single chain30 pcs.
Warranty4 years
