LISTWA XBAR 180
Listwy do bardzo płytkich zastosowań od 30mm
Suitable for this depth: 30-50 mm
30-50
mm3 years warranty
3 yearsIP 20
IP 20Color temperature: 6500K
6500KBeam angle: 180°
180°Constant current driver system
See PDF specification:
Choose the depth:
Suitable for this depth:

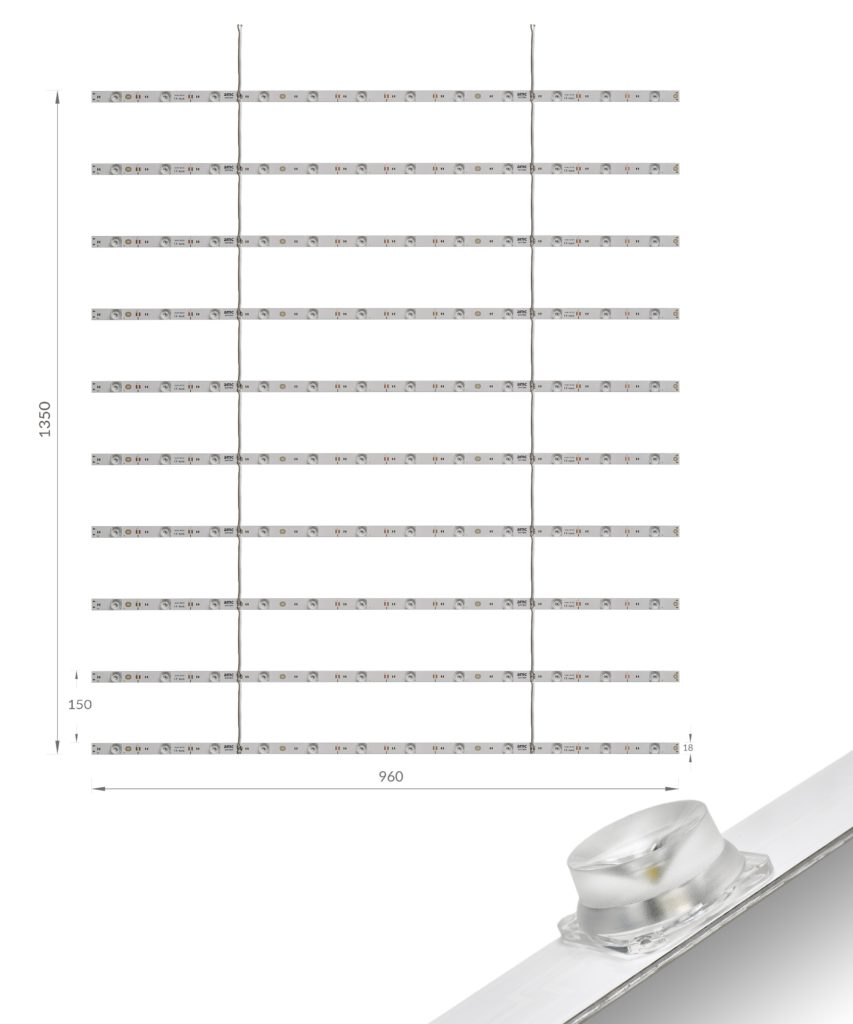

Dimensions:
Connection scheme:
| Type | Listwa Xbar 180 |
|---|---|
| Rated power/ forwarding current | 14.4W/100mA |
| Voltage | 12V |
| Luminous flux [Lm] | 12 x 120 lm |
| Light efficiency | 100 lm/W |
| Beam angle | 180° |
| Color temperature [K] | 6500K |
| Operating temperature | -25°C ~ 60 °C |
| Dimensions (l x w x h) | 960x18x1 [mm] |
| LED spacing/module spacing [mm] | 80mm |
| Chip | 2835 |
| Stabilizacja prądowa | brak |
| IP rating | IP20 |
| LED lifespan [h] | 50 000h |
| Sposób podłączenia | 10 listw |
| Warranty | 3 years |
Download:
Connection scheme:
