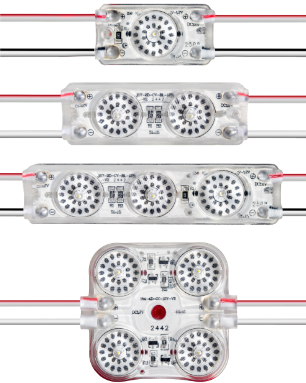

DOT LENS
Innovative "black dots" technology - better light dispersion.
For lightboxes with a depth of: 30-250 mm
30-250
mm5 years warranty
5 yearsIP Protection 65
IP 65Color Temperature: 2800-7000K
2800-7000KBeam angle: 170°
170°Constant current driver system
See PDF specification:
Get a quote:
Choose the depth of the light panel:
Suitable for this depth:
Dimensions:
Connection diagram:
Note!
The maximum number of modules connected in a single chain is 20 pcs. In case of use of the larger number of modules, please connect them to power supply by separate cables (parallel connection of chains).
| Parameters | DOT LENS 1 | DOT LENS 2 | DOT LENS 3 | DOT LENS 4 |
|---|---|---|---|---|
| Power/current | 0.36W/30mA | 0.72W/60mA | 1.08W/90mA | 1.44W/120mA |
| Voltage | 12V/24V | 12V | ||
| Luminous flux | 60-65lm | 120-130lm | 180-185lm | 245-250lm |
| Beam angle | 170° | |||
| Color temperature | 6500-7000K | |||
| Working temperature | -40°C ~ 60 °C | |||
| Dimensions | 36x19x9.4 | 56x19x8.1 | 79x19x7.9 | 44x49x9.1 |
| C2C distance | 160 mm | 200 mm | 265 mm | 280 mm |
| Chip type | 2835 | |||
| IP protection | IP65 |
|||
| Durability | 50 000h | |||
| Max in one chain | 20 pcs | |||
| Warranty | 5 years | |||
